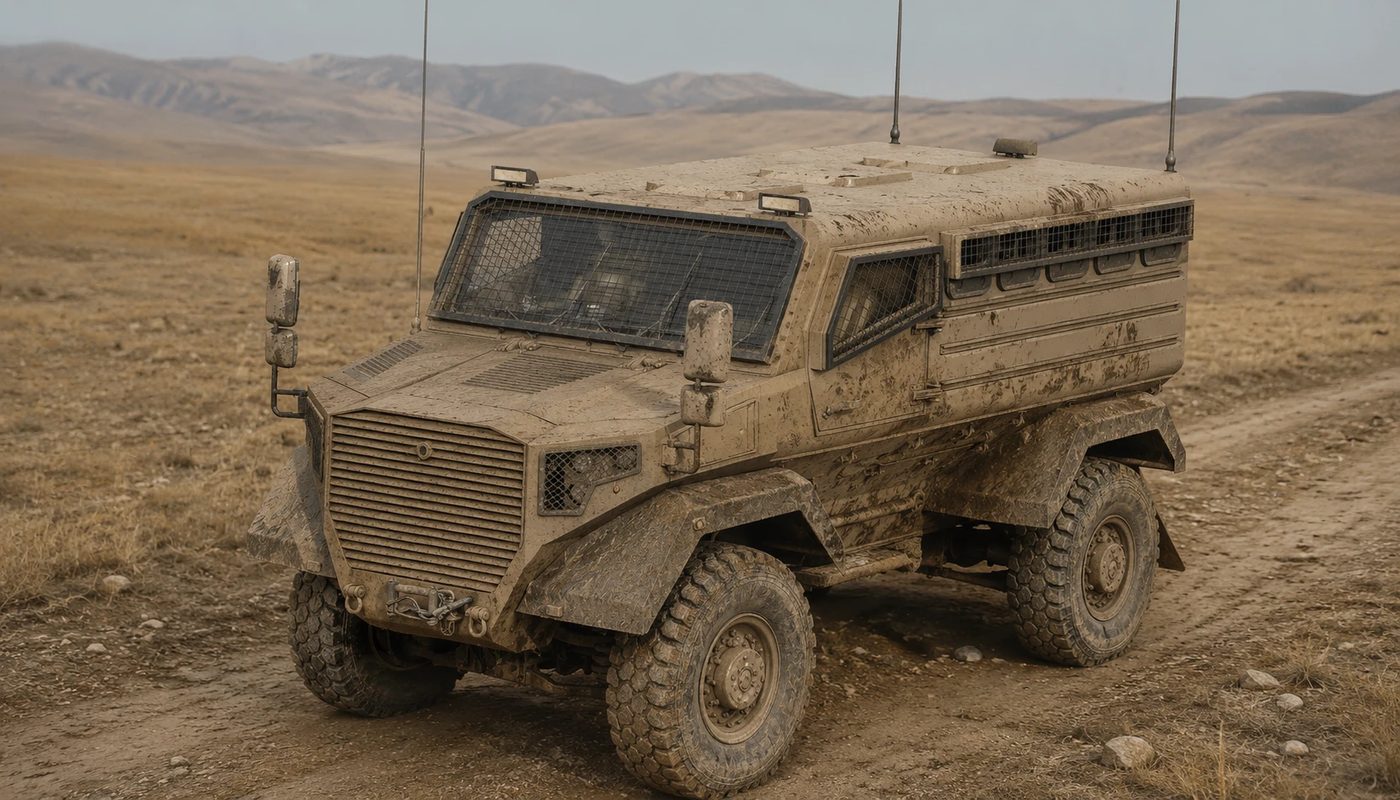

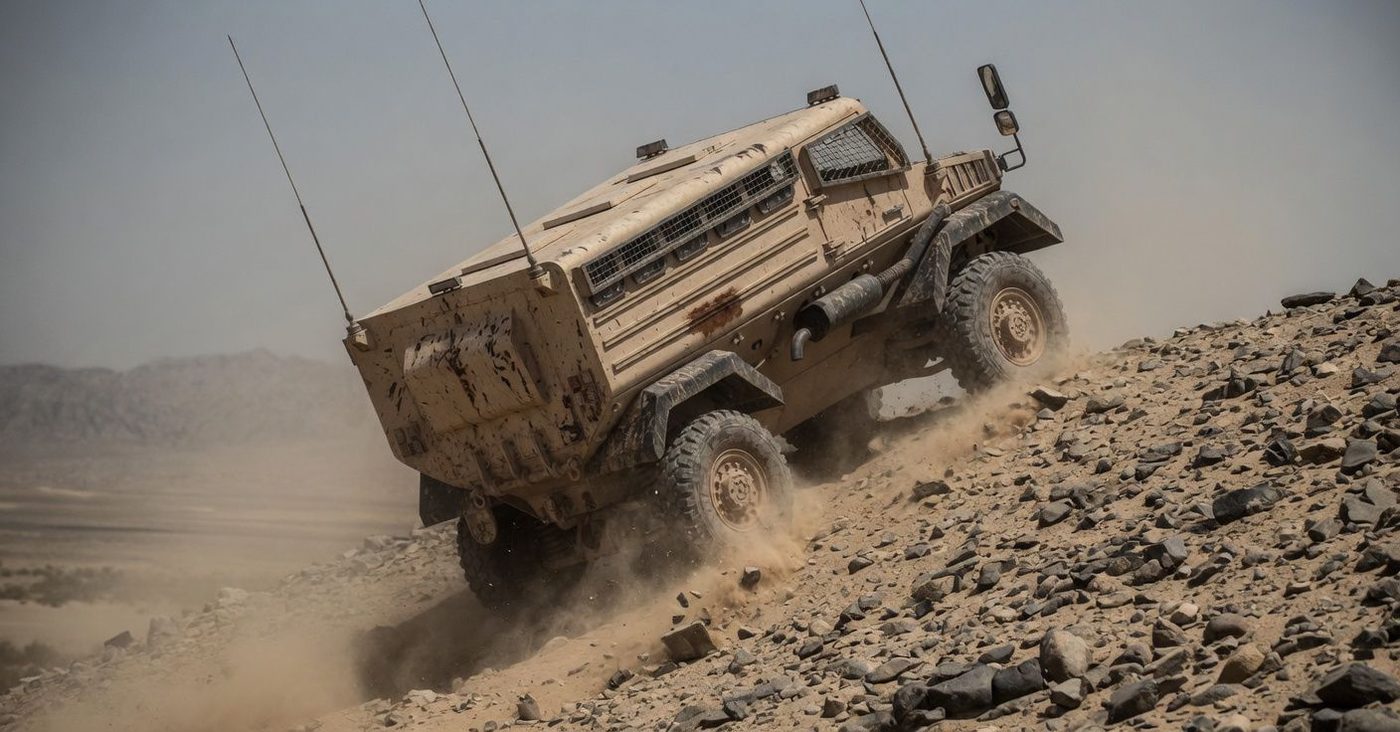

DEMİR 4X4 MRAP
Technical data

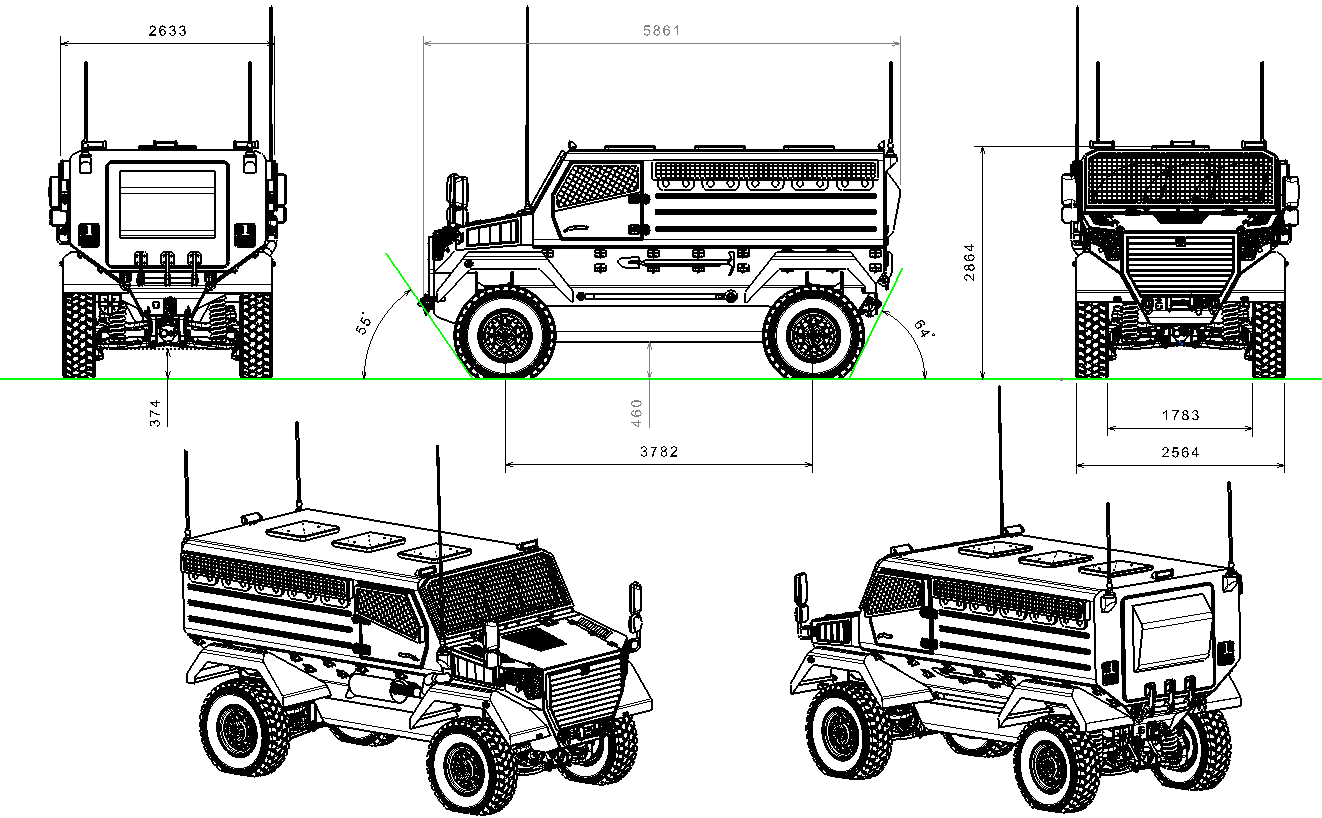

General
| Length | 5861 mm |
|---|---|
| Width | 2633 mm (with folded side mirrors) |
| Height | 2864 mm |
| Wheelbase | 3780 mm |
| Ground clearance | 460 mm |
| Gross vehicle weight | 17000 kg |
| Payload capacity | 2500 kg |
| Crew capacity | 12 or 11 persons in total (including driver, gunner and commander) |
Mobility
| Maximum speed | 100 km/h |
|---|---|
| Fuel tank capacity | 300 L |
| Fuel type | Diesel (F54, F32 can be used) |
| Cruising range | 650+ km |

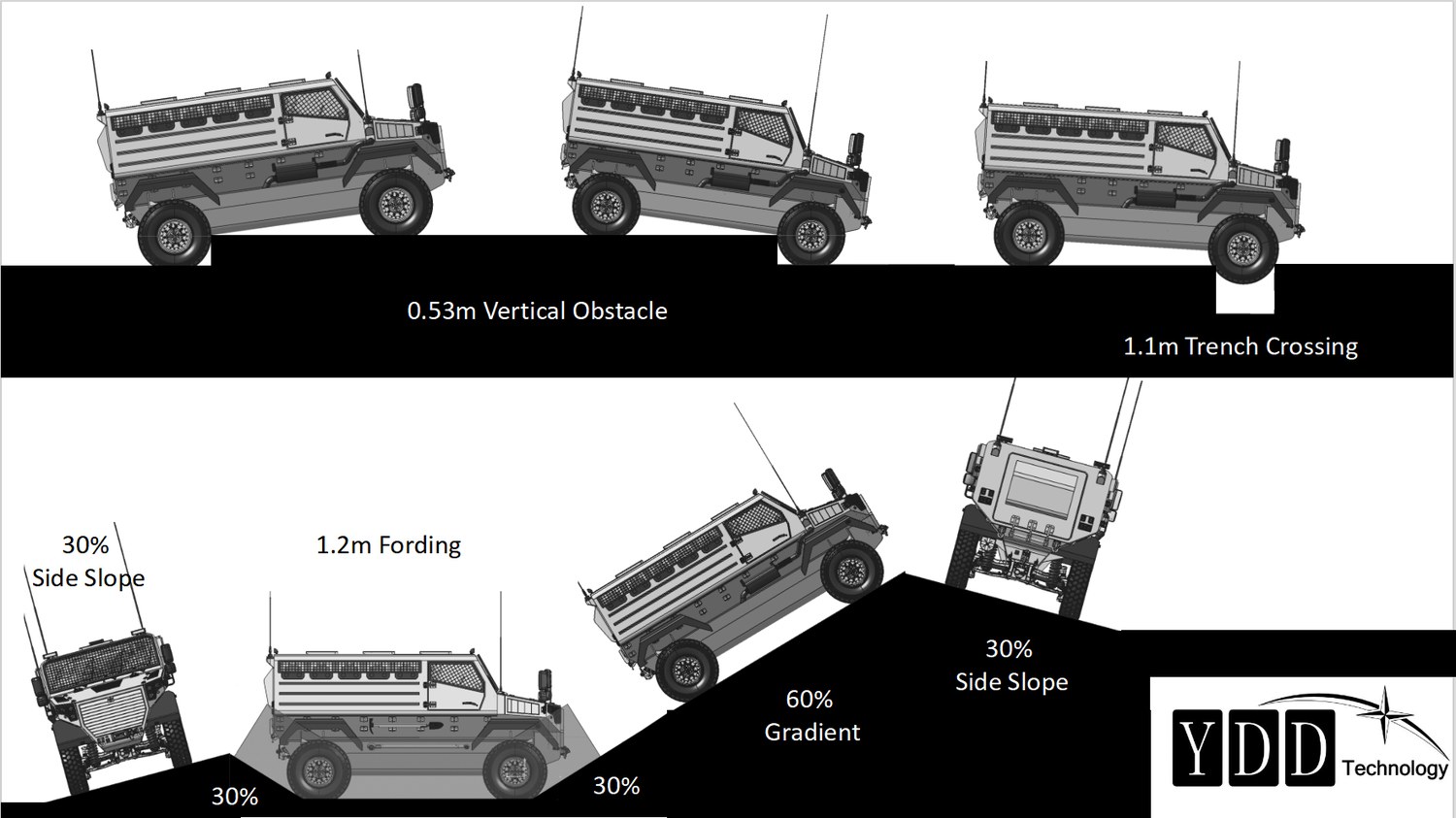

| Gradient | 60% |
| Side slope | 30% |
| Departure angle | 64° |
| Approach angle | 55° |
| Vertical obstacle | 0.53 m |
| Trench crossing | 1.1 m |
| Fording without preparation | 1.2 m |
| Operating temperature | −20 / +55 °C |
Protection
| Hull type | Monocoque body, strengthened V-shaped hull, shock-absorbing floor plate, strengthened body |
|---|---|
| Ballistic protection | 360° protection, 7.62×51 mm AP at 10 m, 820 m/s (EN 1063 and CEN 1522 BR7) |
| Mine shock-absorbing seats | (10 personnel + 1 driver + 1 commander) or (8 personnel + 1 driver + 1 commander + 1 gunner) |
| Mine locks and strengthened hinges | 3 doors (overlapping doors), mine locks |
| Seat belts | 5-point seat belts |
Engine
| Model | Cummins ISL, 8.9 L, 6 cylinders |
|---|---|
| Type | Turbocharged, intercooled, diesel |
| Maximum power | 400 PS (298 kW) @ 2100 rpm |
| Maximum torque | 1550 Nm @ 1100–1400 rpm |
| Fuel injection | Direct injection, high-pressure common rail |
| Emission level | Euro 3 |
Transmission
| Model | Allison SP3200 |
|---|---|
| Type | Fully automatic |
| Gears | 6 forward / 1 reverse, with torque converter |
Transfer gearbox
| Model | BASE TKA-420A |
|---|---|
| Type | All-wheel drive |
| Gears | Low / High / Neutral |
| Drive configuration | Permanent 4x4 with inter-axle and cross differential locks |
Axles and suspension
| Model | BASE BTA110 |
|---|---|
| Suspension | Fully independent suspension with coil springs and shock absorbers |
| Differential | With differential lock |
| Wheel hub | Planetary hub reduction |
Wheels
| Tyre | 14.00 R20 |
|---|---|
| Rim | 10×20″ |
| Run-flat | Standard |
| CTIS (central tyre inflation system) | Programmable settings for different ground conditions |
Steering system
| Type | Hydraulic power-assisted |
|---|---|
| Steering column | Telescopic, tiltable steering column |
Brake system
| Service brake | Full air, disc type |
|---|---|
| Parking brake | Spring-actuated |
Electrical system
| Batteries | 2 × 12 V |
|---|---|
| Alternator | 24 V, 190 A |
Ergonomics
| Ergonomic seats | Standard |
|---|---|
| Air conditioning | Separate controls for the front and rear of the vehicle |
| Easy maintenance | Easy access to subsystems |
| Easy-to-open side and rear doors | 1 on each side and 1 at the rear |
| Gun ports | Allow multi-angle firing (left- and right-handed) |
| Gun mounts | Gun mounts that are easy for the crew to reach and use |
Standard equipment
- Driver front and rear assistance cameras
- Run-flat tyres
- Air conditioning system
- Searchlight
- Self-recovery winch (18000 lb)
- Engine fire suppression system
- Mine lock on each door
- Hydraulically powered, easy-to-control rear door
All values may vary by ±10%. Pictures are for information only.
